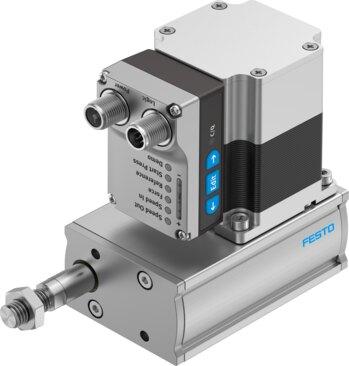

Reference imageConfirm configuration by manufacturer part number.
Festo
8102164
Electric cylinder unit EPCE-TB-60-30-FL-ST-M-H1-PLK-AA
The Festo 8102164 is a size 60 electric cylinder featuring an integrated actuator, toothed belt drive with a 2 mm pitch, 10.18 mm drive pinion effective diameter, 30 mm stroke, and 0 mm stroke reserve. Equipped with an M10x1.25 piston rod thread, plain bearing-guide for torsion protection, and a 0.375 % toothed belt elongation, this component operates in any mounting position with a maximum speed of 0.6 m/s, maximum acceleration of 9 m/s², and a repetition accuracy of ±0.05 mm. Position sensing is handled by a motor encoder alongside an absolute single-turn magnetic rotor position sensor, complemented by an LED display, user interface, integrated end-position sensing, and configurable, non-galvanically isolated digital logic outputs. Thermal management utilizes an integrated precise CMOS temperature sensor with an analogue output that initiates shutdown in the event of over temperature. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8102164
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8102164.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 10.18 mm
- Size
- 60
- Stroke
- 30 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M10x1.25
- Toothed belt elongation
- 0.375 %
- Toothed belt pitch
- 2 mm
- Mounting position
- Any
- Position sensing
- Motor encoder
- Structural design
- Electric cylinder | With toothed belt | With integrated actuator
- Protection against torsion/guide
- With plain bearing-guide
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 9 m/s²
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.05 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 300 mA
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link®
