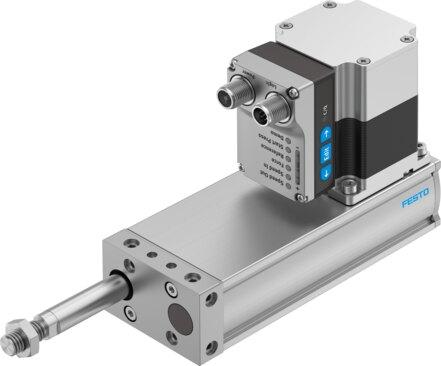

Reference imageConfirm configuration by manufacturer part number.
Festo
8102171
Electric cylinder unit EPCE-TB-60-80-FL-MF-ST-M-H1-PLK-AA
The Festo 8102171 is an electric cylinder of size 60 featuring a structural design with a toothed belt and an integrated actuator, offering a stroke of 80 mm with a 0 mm stroke reserve and an M10x1.25 piston rod thread. This unit includes a plain bearing-guide for torsion protection, a motor encoder for position sensing, an absolute single-turn magnetic rotor position sensor, and an integrated precise CMOS temperature sensor with an analogue output providing over-temperature shutdown. Operating with a max speed of 0.6 m/s, a max acceleration of 9 m/s², and a repetition accuracy of ±0.05 mm, it is equipped with a 10.18 mm drive pinion effective diameter, a 2 mm toothed belt pitch, a 0.375 % toothed belt elongation, an LED display, configurable non-galvanically isolated digital logic outputs, and supports any mounting position. Request a quote for part number 8102171 by specifying your required quantity and application details.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8102171
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8102171.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 10.18 mm
- Size
- 60
- Stroke
- 80 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M10x1.25
- Toothed belt elongation
- 0.375 %
- Toothed belt pitch
- 2 mm
- Mounting position
- Any
- Position sensing
- Motor encoder
- Structural design
- Electric cylinder | With toothed belt | With integrated actuator
- Protection against torsion/guide
- With plain bearing-guide
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 9 m/s²
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.05 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 300 mA
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link®
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8102171. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
