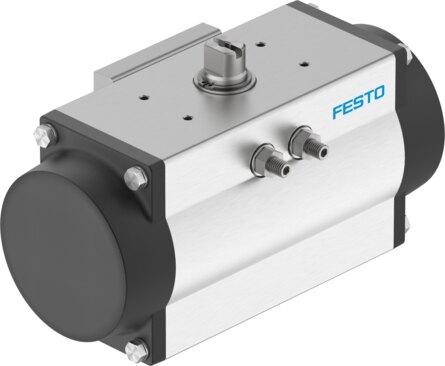

Reference imageConfirm configuration by manufacturer part number.
Festo
8102812
Quarter turn actuator DFPD-N-80-RP-90-RS35-F07-R3-C
The Festo single-acting gear rack/pinion industrial component features a valve actuator size of 80, an F07 flange hole pattern, a 90-degree swivel angle, and an ISO 5211 standard connection for valves. Operating at a nominal pressure of 3.5 bar (0.35 MPa / 50.75 psi) with an operating pressure range of 2 bar to 8 bar (0.2 MPa to 0.8 MPa / 29 psi to 116 psi) and a burst pressure of 24 bar, the unit includes an end-position adjusting range of -5 degrees to 5 degrees at both 0 degrees and the nominal swivel angle, a 19 mm shaft connection depth, and closes to the right. It incorporates a safety function that switches to the defined safety position via spring force when compressed air is switched off and the spring chamber is exhausted, certified to ISO 13849 and IEC 61508 for use up to SIL 2 in low demand mode, SIL 1 in high demand mode, and SIL 3 in a redundant architecture. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8102812
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8102812.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 80
- Flange hole pattern
- F07
- Swivel angle
- 90 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- -5 deg...5 deg
- Depth shaft connection
- 19 mm
- Standard connection for valve
- ISO 5211
- Mounting position
- Any
- Mode of operation
- Single-acting
- Structural design
- Gear rack/pinion
- Closing direction
- Closes to the right
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 1
- Devices type according to VDMA 66413
- Safety device
- Safety function
- The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched off and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
- Safety integrity level (SIL)
- Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
- Certied for safety function to ISO 13849 and IEC 61508 (SIL)
- Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
- Burst pressure
- 24 bar
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.35 MPa | 3.5 bar | 50.75 psi
- Maritime classication
- See certicate
