Festo
8102818

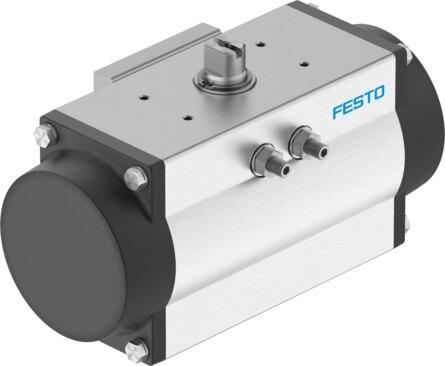

Quarter turn actuator DFPD-120-RP-90-RS35-F07-R3-C
The Festo 8102818 is a single-acting gear rack and pinion industrial valve actuator featuring a size 120 body, an F07 flange hole pattern, and a nominal swivel angle of 90 degrees with an end-position adjusting range of -5 to 5 degrees at both 0 degrees and the nominal angle. Built with a shaft connection depth of 19 mm, an ISO 5211 standard valve connection, and VDI/VDE 3845 NAMUR and AA 1 compliance for positioners and sensors, it operates at a nominal pressure of 3.5 bar (50.75 psi) within an operating pressure range of 2 bar to 8 bar and a burst pressure of 24 bar. Certified as a safety device to ISO 13849 and IEC 61508 for SIL 2 low demand, SIL 1 high demand, and SIL 3 in redundant architectures, the unit performs its safety function by switching to the defined safety position via spring force when compressed air is switched off and the spring chamber is exhausted. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8102818
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8102818.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 120
- Flange hole pattern
- F07
- Swivel angle
- 90 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- -5 deg...5 deg
- Depth shaft connection
- 19 mm
- Standard connection for valve
- ISO 5211
- Mounting position
- Any
- Mode of operation
- Single-acting
- Structural design
- Gear rack/pinion
- Closing direction
- Closes to the right
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 1
- Devices type according to VDMA 66413
- Safety device
- Safety function
- The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched off and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
- Safety integrity level (SIL)
- Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
- Certied for safety function to ISO 13849 and IEC 61508 (SIL)
- Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
- Burst pressure
- 24 bar
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.35 MPa | 3.5 bar | 50.75 psi
- Maritime classication
- See certicate
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8102818. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
