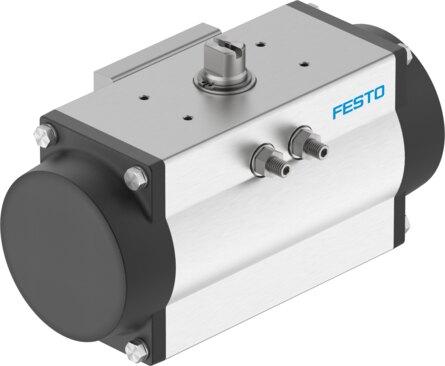

Name: Festo 8102822 Quarter turn actuator DFPD-N-120-RP-90-RS45-F07-R3-C
Brand: Festo

Quarter turn actuator DFPD-N-120-RP-90-RS45-F07-R3-C

The Festo part number 8102822 is a single-acting gear rack and pinion industrial valve actuator featuring a size 120 designation, an F07 flange hole pattern, and a nominal 90-degree swivel angle with a shaft connection depth of 19 mm. Operating within a pressure range of 2 bar to 8 bar (29 psi to 116 psi) at a nominal operating pressure of 4.5 bar (65.25 psi) and a burst pressure of 24 bar, this unit includes adjustable end-positions from -5 to 5 degrees at both 0 degrees and the nominal swivel angle. Certified to ISO 13849 and IEC 61508, the safety function utilizes spring force to switch the actuator to a defined safety position upon compressed air exhaust, supporting safety integrity levels up to SIL 2 in low demand mode, SIL 1 in high demand mode, and SIL 3 in redundant architecture. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8102822
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8102822.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 120
Flange hole pattern: F07
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 19 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Single-acting
Structural design: Gear rack/pinion
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 1
Devices type according to VDMA 66413: Safety device
Safety function: The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched oﬀ and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
Burst pressure: 24 bar
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Nominal operating pressure: 0.45 MPa | 4.5 bar | 65.25 psi
Maritime classication: See certicate

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8102822. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
