Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

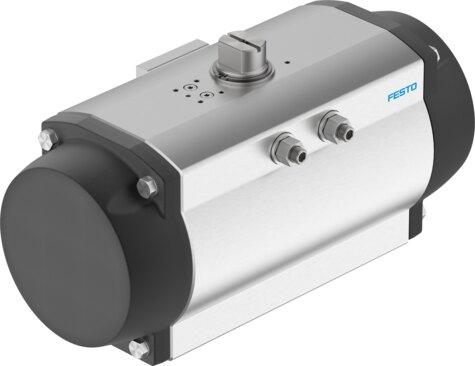

Reference imageConfirm configuration by manufacturer part number.
Festo
8102894
Quarter turn actuator DFPD-900-RP-90-RS35-F14-R3-C-VDE2
The Festo 8102894 is a single-acting industrial valve actuator featuring a size 900 gear rack and pinion structural design, a 90-degree swivel angle, and an ISO 5211 standard valve connection. This safety device operates at a nominal pressure of 3.5 bar (0.35 MPa / 50.75 psi) with an operating pressure range of 2 bar to 8 bar (0.2 MPa to 0.8 MPa / 29 psi to 116 psi) and a burst pressure of 24 bar. It includes an end-position adjusting range of -5 degrees to 5 degrees at both 0 degrees and the nominal swivel angle, a 38 mm shaft connection depth, an F14 flange hole pattern, and VDI/VDE 3845 (NAMUR) valve connection compliance. Certified to ISO 13849 and IEC 61508, the safety function executes via spring force to switch the actuator to a defined safety position when compressed air is switched off and the spring chamber is exhausted, supporting up to SIL 2 in low demand mode, SIL 1 in high demand mode, and SIL 3 in a redundant architecture. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8102894
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8102894.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 900
- Flange hole pattern
- F14
- Swivel angle
- 90 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- -5 deg...5 deg
- Depth shaft connection
- 38 mm
- Standard connection for valve
- ISO 5211
- Mounting position
- Any
- Mode of operation
- Single-acting
- Structural design
- Gear rack/pinion
- Closing direction
- Closes to the right
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 3
- Devices type according to VDMA 66413
- Safety device
- Safety function
- The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched off and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
- Safety integrity level (SIL)
- Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
- Certied for safety function to ISO 13849 and IEC 61508 (SIL)
- Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
- Burst pressure
- 24 bar
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.35 MPa | 3.5 bar | 50.75 psi
- Maritime classication
- See certicate
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8102894. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
