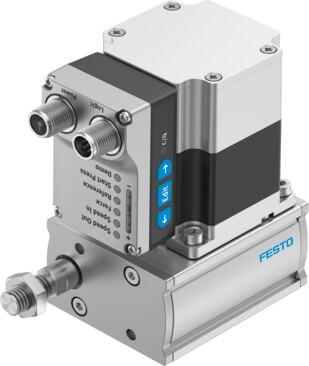

Reference imageConfirm configuration by manufacturer part number.
Festo
8103355
Electric cylinder unit EPCE-TB-60-
The Festo part number 8103355 is an electric cylinder with a toothed belt and integrated actuator featuring a size 60 design, a 10.18 mm drive pinion effective diameter, and a stroke length ranging from 10 mm to 80 mm with 0 mm stroke reserve. This component includes a plain bearing-guide for torsion protection, an M10x1.25 piston rod thread, a 2 mm toothed belt pitch with 0.375 % elongation, and supports any mounting position with position sensing via a motor encoder and absolute single-turn magnetic rotor position sensor. Operating parameters include a maximum speed of 0.6 m/s, a maximum acceleration of 9 m/s², a repetition accuracy of ±0.05 mm, LED display, user interface, integrated end-position sensing, and overtemperature shutdown via an integrated CMOS temperature sensor with analog output alongside configurable, non-galvanically isolated digital logic outputs. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8103355
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8103355.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 10.18 mm
- Size
- 60
- Stroke
- 10 mm...80 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M10x1.25
- Toothed belt elongation
- 0.375 %
- Toothed belt pitch
- 2 mm
- Mounting position
- Any
- Position sensing
- Motor encoder
- Structural design
- Electric cylinder | With toothed belt | With integrated actuator
- Protection against torsion/guide
- With plain bearing-guide
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 9 m/s²
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.05 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 300 mA
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link®
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8103355. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
