Festo
8103461

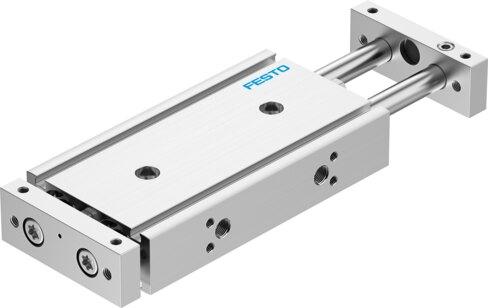

Twin cylinder DGTZ-GF-25-50-J-T-P-A
The Festo 8103461 is a double-acting industrial drive unit featuring a 25 mm piston diameter, a 50 mm stroke, and a plain-bearing guide with two yokes. It operates within a pressure range of 0.12 MPa to 0.8 MPa utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting force of 454 N at 6 bar. This component incorporates elastic cushioning rings at both ends with an end position impact energy of 0.3 Nm, an adjustable end position range of 10 mm, and position sensing via proximity switch. Rated for ambient temperatures from -10 °C to 80 °C, it meets ISO 14644-1 Class 5 cleanroom suitability and features a CRC 1 corrosion resistance class. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8103461
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8103461.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Two yokes
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.12 MPa...0.8 MPa | 1.2 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.3 Nm
- Max. payload as a function of the stroke at dened distance xs
- 29.6 N
- Theoretical force at 6 bar, retracting
- 454 N
- Theoretical force at 6 bar, advancing
- 454 N
- Moving mass
- 497 g
- Product weight
- 1237 g
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy, anodized
- Piston rod material
- high-alloy stainless steel
