Festo
8103487

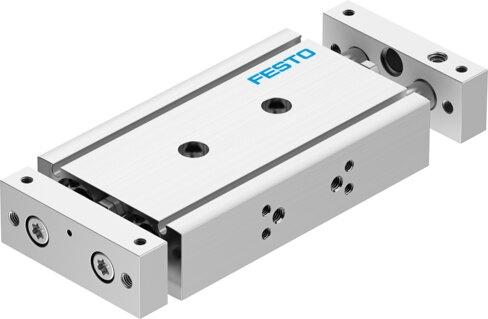

Twin cylinder DGTZ-GF-20-10-J-T-P-A
The Festo industrial component, part number 8103487, is a double-acting guide drive unit featuring a 20 mm piston diameter, a 10 mm stroke, and a 10 mm adjustable end position range. It operates within a pressure range of 0.12 MPa to 0.8 MPa utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes elastic cushioning rings at both ends, a plain-bearing guide with two yokes, and position sensing via proximity switch. The unit supports an ambient temperature range of -10 °C to 80 °C, achieves a theoretical retracting force of 283 N at 6 bar, and meets ISO 14644-1 Class 5 cleanroom suitability with a CRC rating of 1. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8103487
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8103487.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 20 mm
- Drive unit operating mode
- Two yokes
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.12 MPa...0.8 MPa | 1.2 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.2 Nm
- Max. payload as a function of the stroke at dened distance xs
- 22.5 N
- Theoretical force at 6 bar, retracting
- 283 N
- Theoretical force at 6 bar, advancing
- 283 N
- Moving mass
- 253 g
- Product weight
- 645 g
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy, anodized
- Piston rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8103487. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
