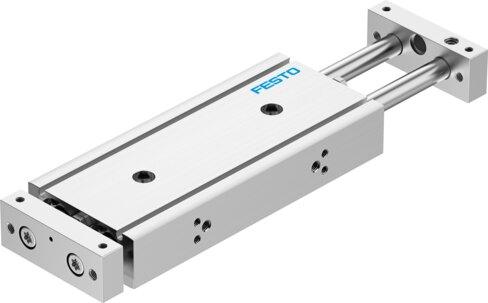

Reference imageConfirm configuration by manufacturer part number.
Festo
8103491
Twin cylinder DGTZ-GF-20-50-J-T-P-A
The Festo 8103491 is a double-acting industrial guide drive unit featuring a 20 mm piston diameter, a 50 mm stroke, and a plain-bearing guide operating with two yokes. It utilizes elastic cushioning rings at both ends with an adjustable end position range of 10 mm, delivering a theoretical retracting force of 283 N at 6 bar across an operating pressure range of 1.2 bar to 8 bar. Designed with ISO Class 5 cleanroom suitability, VDMA24364 Zone III LABS conformity, and CRC 1 corrosion resistance, this component supports compressed air media per ISO 8573-1:2010 [7:4:4] with optional oil lubrication. Position sensing is achieved via proximity switch, operating within an ambient temperature range of -10 °C to 80 °C in any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8103491
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8103491.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 20 mm
- Drive unit operating mode
- Two yokes
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.12 MPa...0.8 MPa | 1.2 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.2 Nm
- Max. payload as a function of the stroke at dened distance xs
- 19.9 N
- Theoretical force at 6 bar, retracting
- 283 N
- Theoretical force at 6 bar, advancing
- 283 N
- Moving mass
- 353 g
- Product weight
- 845 g
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy, anodized
- Piston rod material
- high-alloy stainless steel
