Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

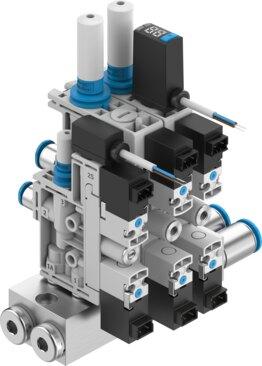

Reference imageConfirm configuration by manufacturer part number.
Festo
8103599
Vacuum generator OVTL
This Festo industrial component, part number 8103599, features a nominal width of Laval nozzle ranging from 0.45 mm to 0.95 mm, a width dimension of 10 mm to 15 mm, and supports 2 to 8 device locations with any mounting position. The unit incorporates an open muffler construction, 40 µm filtration grade, non-detenting manual override, and integrated functions including an electric ejector pulse, flow control valve, pressure sensor, pressure transmitter, electric on-off valve, filter, and open muffler. It delivers a max vacuum of 89% to 92%, a max suction rate with respect to atmosphere of 4 l/min to 45 l/min, and operates at pressures between 2 bar and 7 bar (29 psi to 101.5 psi) with a nominal operating pressure of 4 bar (58 psi). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8103599
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8103599.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm...0.95 mm
- Width dimension
- 10 mm...15 mm
- Muffler construction type
- Open
- Number of device locations
- 2 ...8
- Mounting position
- Any
- Ejector characteristics
- High suction ow | High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse, electric | Flow control valve | Pressure sensor | Pressure transmitter | Electric on-off valve | Filter | Muffler open
- Structural design
- Connection position on both sides | Connection position on the side
- Switching element function
- N/C contact/N/O contact, switchable
- Switching function
- Freely programmable
- Valve function
- Closed
- Display type
- LED indicator | 2-digit
- Operating pressure for max. suction rate
- 3 bar...6 bar
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar | 29 psi...101.5 psi
- Operating pressure for max. vacuum
- 3.8 bar...4.5 bar
- Max. vacuum
- 89 %...92 %
- Nominal operating pressure
- 0.4 MPa | 4 bar | 58 psi
- Max. suction rate with respect to atmosphere
- 4 l/min...45 l/min
- Air supply time at nominal operating pressure with ejector pulse
- 0.4 s...2 s
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8103599. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
