Festo
8104042

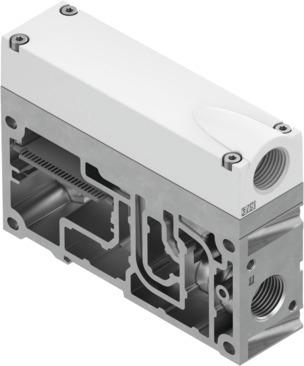

Expansion module VABF-S6-1-P8A7-G12-CB
The Festo 8104042 industrial component features die-cast aluminum cover and plate materials with a width of 38 mm and a product weight of 611 g. This RoHS-compliant unit includes G1/2 pneumatic connection 1 and G1/2 pneumatic connection 3, possesses a corrosion resistance class (CRC) of 0 for no corrosion stress, and maintains VDMA24364-B1/B2-L LABS conformity alongside CE marking as per the EU low voltage directive. Submit the exact part number, quantity, and application requirements for a formal quote on this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8104042
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8104042.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 38 mm
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 611 g
- Pneumatic connection 1
- G1/2
- Pneumatic connection 3
- G1/2
- Note on materials
- RoHS compliant
- Cover material
- Die-cast aluminum
- Plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8104042. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
