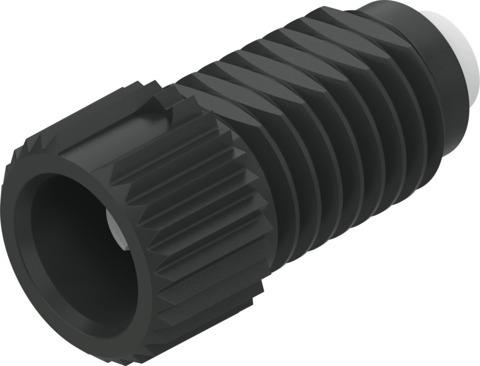

Reference imageConfirm configuration by manufacturer part number.
Festo
8104285
Fitting NLFA-D-U14-K1.6-PP-P10
The Festo 8104285 is a straight industrial component featuring a tubing mount via clamp connection for 8 mm sizing, featuring a UNF1/4-28 fluid connector on one side and a connection for 1.6 mm (1/16") tubing O.D. on fluid connection 2, packaged in a quantity of 10. Constructed with polypropylene media-contact materials, a polyamide-reinforced screwed plug, and a hard sealing principle, this RoHS-compliant part supports liquid and gaseous media within an operating pressure range of -0.75 bar to 6 bar (-10.875 psi to 87 psi) and medium and ambient temperatures from 0 °C to 50 °C. It weighs 0.53 g, allows any mounting position, and requires a nominal tightening torque of 15 Ncm with a \u00b115% tolerance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8104285
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8104285.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- Structural design
- Tubing mount via clamp connection
- Design
- Straight design
- Size
- ø 8 mm
- Fluid connector
- UNF1/4-28
- Fluid connection 2
- For tubing O.D. 1.6 mm (1/16")
- Medium
- Liquid media | Gaseous media
- Information on medium
- Observe resistance of materials that come into contact with media
- Operating pressure for entire temperature range
- -0.075 MPa...0.6 MPa | -0.75 bar...6 bar | -10.875 psi...87 psi
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Sealing principle
- Hard
- Mounting position
- Any
- Nominal tightening torque
- 15 Ncm
- Tolerance for nominal tightening torque
- ±15%
- Product weight
- 0.53 g
- Materials in contact with the media
- PP
- Material of screwed plug
- PA-reinforced
- Note on materials
- RoHS compliant
- For use in the food industry
- See supplementary material information
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Application note
- See application note (available on the support portal at festo.com)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8104285. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
