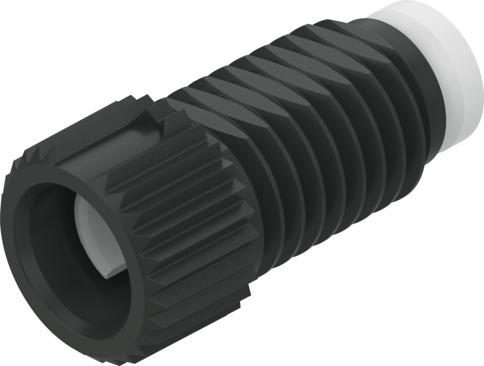

Reference imageConfirm configuration by manufacturer part number.
Festo
8104287
Fitting NLFA-D-U14-K3.2-PP-P10
The Festo part number 8104287 is an industrial component featuring a straight design with a tubing mount via clamp connection for 8 mm tubing and a UNF1/4-28 fluid connector for 3.2 mm (1/8") outside diameter tubing. Supplied in a pack size of 10, this RoHS-compliant assembly utilizes polypropylene media-contacting materials and a PA-reinforced screwed plug with a hard sealing principle, operating within a temperature range of 0 °C to 50 °C and pressures from -0.75 bar to 6 bar. It accommodates both liquid and gaseous media in any mounting position, requiring a nominal tightening torque of 15 Ncm with a ±15% tolerance. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8104287
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8104287.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- Structural design
- Tubing mount via clamp connection
- Design
- Straight design
- Size
- ø 8 mm
- Fluid connector
- UNF1/4-28
- Fluid connection 2
- For tubing O.D. 3.2 mm (1/8")
- Medium
- Liquid media | Gaseous media
- Information on medium
- Observe resistance of materials that come into contact with media
- Operating pressure for entire temperature range
- -0.075 MPa...0.6 MPa | -0.75 bar...6 bar | -10.875 psi...87 psi
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Sealing principle
- Hard
- Mounting position
- Any
- Nominal tightening torque
- 15 Ncm
- Tolerance for nominal tightening torque
- ±15%
- Product weight
- 0.44 g
- Materials in contact with the media
- PP
- Material of screwed plug
- PA-reinforced
- Note on materials
- RoHS compliant
- For use in the food industry
- See supplementary material information
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Application note
- See application note (available on the support portal at festo.com)
