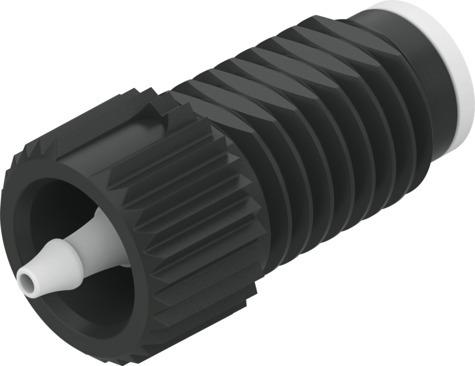

Reference imageConfirm configuration by manufacturer part number.
Festo
8104288
Fitting NLFA-D-U14-B1.2-PP-P10
This Festo industrial component, part number 8104288, is a straight tubing mount featuring an 8 mm size, a UNF1/4-28 fluid connector, and a barbed connector for tubing with a 1.2 mm inside diameter, supplied in a pack size of 10. The hard sealing principle and polypropylene materials in contact with the media operate within a pressure range of -0.075 MPa to 0.4 MPa and a medium and ambient temperature range of 0 °C to 35 °C, utilizing a nominal tightening torque of 15 Ncm with a ±15% tolerance. The RoHS-compliant assembly weighs 1.06 g, incorporates a reinforced polyamide screwed plug, and is compatible with both liquid and gaseous media when material resistance is observed. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8104288
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8104288.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- Structural design
- Tubing mount via barbed connector
- Design
- Straight design
- Size
- ø 8 mm
- Fluid connector
- UNF1/4-28
- Fluid connection 2
- For tubing I.D. 1.2 mm
- Medium
- Liquid media | Gaseous media
- Information on medium
- Observe resistance of materials that come into contact with media
- Operating pressure for entire temperature range
- -0.075 MPa...0.4 MPa | -0.75 bar...4 bar | -10.875 psi...58 psi
- Temperature of medium
- 0 °C...35 °C
- Ambient temperature
- 0 °C...35 °C
- Storage temperature
- -20 °C...70 °C
- Sealing principle
- Hard
- Mounting position
- Any
- Nominal tightening torque
- 15 Ncm
- Tolerance for nominal tightening torque
- ±15%
- Product weight
- 1.06 g
- Materials in contact with the media
- PP
- Material of screwed plug
- PA-reinforced
- Note on materials
- RoHS compliant
- For use in the food industry
- See supplementary material information
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Application note
- See application note (available on the support portal at festo.com)
