Festo
8104526
Solenoid coil VACN-N-R3-1
This Festo industrial component, part number 8104526, is an electrical actuation device conforming to ISO 20401 with a 100% duty cycle and a coil rating of 24 V DC at 2.7 W. Featuring an IP65 degree of protection, class F insulation, and an M12x1 A-coded plug connection with a screw-type lock, the 100 g unit operates within an ambient temperature range of -20 °C to 60 °C. It offers moderate corrosion resistance (CRC 2), contamination level 3 compliance, VDMA24364-B2-L LABS conformity, and an integrated LED signal status display for mounting in any position using a knurled nut. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8104526
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8104526.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Conforms to standard
- ISO 20401
- Signal status display
- LED
- Duty cycle
- 100%
- Insulation class
- F
- Enameled wire insulation class
- H
- Coil characteristics
- 24 V DC: 2.7 W
- Contamination level
- 3
- Permissible voltage uctuations
- +/- 10%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 100 g
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology

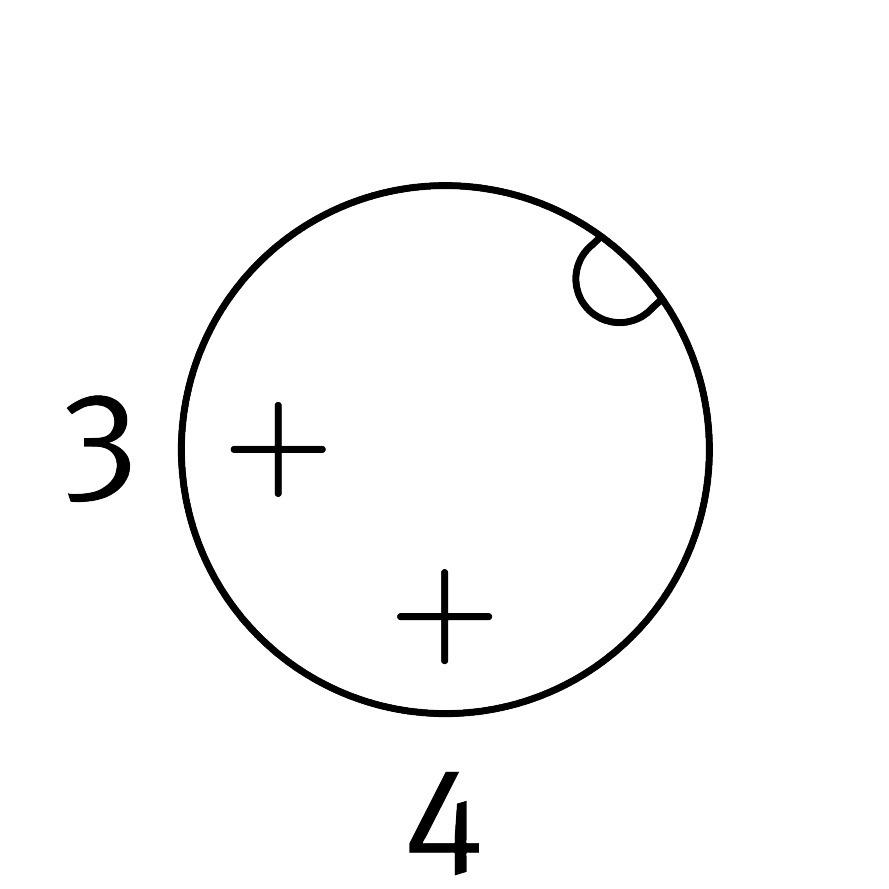

- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, type of mounting
- Screw-type lock
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Housing material
- Polymer
- Solenoid coil material
- Duroplast | Copper | Steel
- Material of winding
- Copper
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8104526. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
