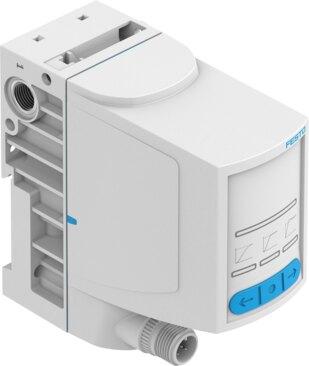

Reference imageConfirm configuration by manufacturer part number.
Festo
8104668
Proportional pressure control valve VPPI-5L-3-G18-0L10H-V1-S1
The Festo 8104668 is a 3-way proportional pressure control valve featuring a poppet valve structural design with spring return, direct control type, and soft sealing principle. It provides a nominal pressurization and exhaust width of 5 mm, operates at pressures from 10 bar to 12 bar, and includes complete reverse polarity and short-circuit protection for all electrical connections alongside an LED display. This component incorporates 0 - 10 V and PWM setpoint inputs with an input resistance of 100 kOhm, a maximum cable length of 30 m, a normally closed safety position VPPI, and a total leakage of 5 l/h in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8104668
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8104668.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width pressurization
- 5 mm
- Exhaust nominal width
- 5 mm
- Actuation type
- Electrical
- Sealing principle
- Soft
- Total leakage
- 5 l/h
- Flow direction
- Non-reversible
- Mounting position
- Any
- Structural design
- Poppet valve with spring return
- Short-circuit protection
- For all electrical connections
- Max. cable length
- 30 m
- Setpoint input
- 0 - 10 V | PWM
- Input resistance
- 100 kOhm
- Safety instructions
- Safety position VPPI, normally closed
- Reverse polarity protection
- for all electrical connections
- Reset method
- Mechanical spring
- Dimensions W x L x H
- 42.2 mm x 95.3 mm x 94.3 mm
- Type of control
- directly
- Valve function
- 3-way proportional pressure control valve
- Display type
- LED
- Operating pressure
- 10 bar...12 bar
- Pressure regulation range MPa
- 0 MPa...1 MPa
- Pressure regulation range
- 0 bar...10 bar
- Inlet pressure 1
- 0 bar...13 bar
- Inlet pressure 1 MPa
- 0 MPa...1.3 MPa
- Burst pressure
- 40 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Standard nominal ow rate 2-3
- 750 l/min
- DC operating voltage range
- 21.6 V...27.6 V
- Nominal current
- 0.15 A
- Max. current consumption
- 525 mA
