Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

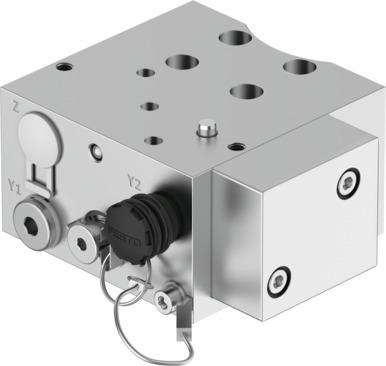

Reference imageConfirm configuration by manufacturer part number.
Festo
8104802
Control plate DADG-FM-F9-VDE2
The Festo industrial component, part number 8104802, complies with VDI/VDE 3845 (NAMUR) and VDI/VDE 3847-2 norms while offering installation in any mounting position. Constructed with an anodized wrought aluminum alloy plate, high-alloy stainless steel threaded pins and screws, and EPDM and NBR seals, it features a nominal operating pressure of 0.6 MPa (6 bar, 87 psi) within an operating range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi). This unit supports ATEX explosion prevention and protection for Zones 1, 2, 21, and 22, operates within an ambient temperature range of -20 °C to 80 °C, and weighs 1340 g with a G1/4 pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8104802
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8104802.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- VDI/VDE 3845 (NAMUR) | VDI/VDE 3847-2
- Mounting position
- Any
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Dew point min. 10 °C below the ambient temperature and temperature | of medium | Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -20 °C...80 °C
- Product weight
- 1340 g
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Seals material
- EPDM | NBR
- Threaded pin material
- high-alloy stainless steel
- Plate material
- Wrought aluminum alloy, anodized
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8104802. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
