Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

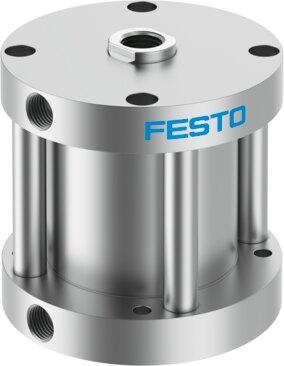

Reference imageConfirm configuration by manufacturer part number.
Festo
8104885
Pancake cylinder DPCB-N-...-3"- -
This Festo industrial component, part number 8104885, features a 3-inch piston diameter with a stroke ranging from 0.125 inches to 4 inches and operates in any mounting position. The structural design incorporates a piston, piston rod, and cylinder barrel, supporting double-acting, single-acting, pushing, or pulling modes of operation with selectable cushioning options and piston rod thread configurations. Position sensing is achieved via proximity switch, alongside configurable variants including NBR wipers, rotated supply ports, extended or through piston rods, and anti-torsion double piston rod guides. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8104885
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8104885.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.125 in...4 in
- Piston diameter
- 3"
- Piston rod thread
- 5/8-18 UNF-2B | 5/8-18 UNF-2A | 5/8-11 UNC-2B | 5/8-11 UNC-2A
- Cushioning
- No cushioning | Elastic cushioning rings/pads at both ends | Elastic cushioning rings/plates, at front | Elastic cushioning rings/plates, at rear
- Mounting position
- Any
- Mode of operation
- Double-acting | Pushing | Single-acting | Pulling
- Piston rod end
- External thread | Internal thread | No thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Wiper made of NBR | Supply port, rotated 180° | Supply port, rotated 270° | Supply port, rotated 90° | Increased chemical resistance | Extended piston rod | Square lid shape | Low friction | Through piston rod | Through, hollow piston rod | Temperature range -40 to 80°C | Reinforced end cap
- Protection against torsion/guide
- Double piston rod with end plate | Double piston rod with end plate, rotated 90° | Double piston rod with end plate with recess and through-hole | Double piston rod with end plate with recess and through-hole rotated | 90°
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8104885. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
