Festo
8105012
Plug socket NECV-C1W3L-P-P13
The Festo part number 8105012 is an industrial component featuring a square socket electrical connection conforming to EN 175301-803 type C with 3 pins and an M12x1.25 cable fitting. This angled cable outlet with a protective circuit and protective earth connection mounts onto an air solenoid valve via an M2.5 central screw and rotates through 180 degrees. Operating at a nominal 24 V DC and AC within a 20.4 V to 27.6 V range, it supports a 1 A current rating at 40 degrees Celsius, 0.8 kV surge resistance, and a contact durability of 50 while weighing 11.6 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8105012
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8105012.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 175301-803
- Additional functions
- Protective circuit
- Contact durability
- 50
- Cable outlet
- Angled
- Note on cable outlet
- Can be rotated through 180°
- Product weight
- 11.6 g
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology

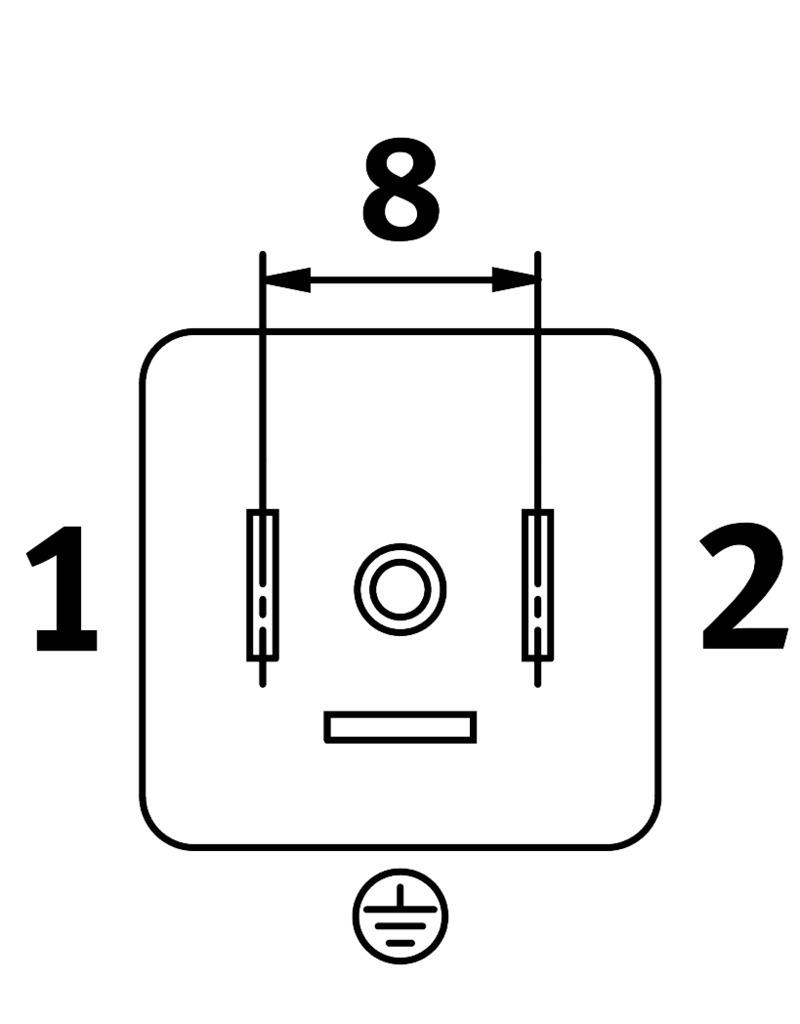

- Connection diagram type C as per EN 175301-803
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- On air solenoid valve with M2.5 central screw
- Electrical connection 2, connection technology
- Screw terminal
- DC operating voltage range
- 20.4 V...27.6 V
- Nominal operating voltage DC
- 24 V
- Operating voltage range AC
- 20.4 V...27.6 V
- Nominal operating voltage AC
- 24 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 0.8 kV
- Protective earth connection
- Available
- Cable tting
- M12x1.25
- Cable diameter
- 4 mm...6 mm
- Nominal conductor cross section
- 0.5 mm²
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Ambient temperature
- -25 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
- Contamination level
- 3
