Festo
8105013
Plug socket NECV-B2W3L-P-P12
The Festo 8105013 is an industrial component featuring an angled cable outlet that can be rotated through 180 degrees and an M15x1.5 cable fitting for 6 mm to 8 mm cables. It is equipped with a 3-pin square socket utilizing connection diagram form B as per industrial standard, 11 mm, and mounts directly to an air solenoid valve using an M3 central screw. Operating at a nominal voltage of 24 V AC/DC within a range of 20.4 V to 27.6 V, this part provides an integrated protective circuit, a protective earth connection, and a current rating of 1 A at 40° C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8105013
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8105013.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Additional functions
- Protective circuit
- Contact durability
- 50
- Cable outlet
- Angled
- Note on cable outlet
- Can be rotated through 180°
- Product weight
- 19.5 g
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology

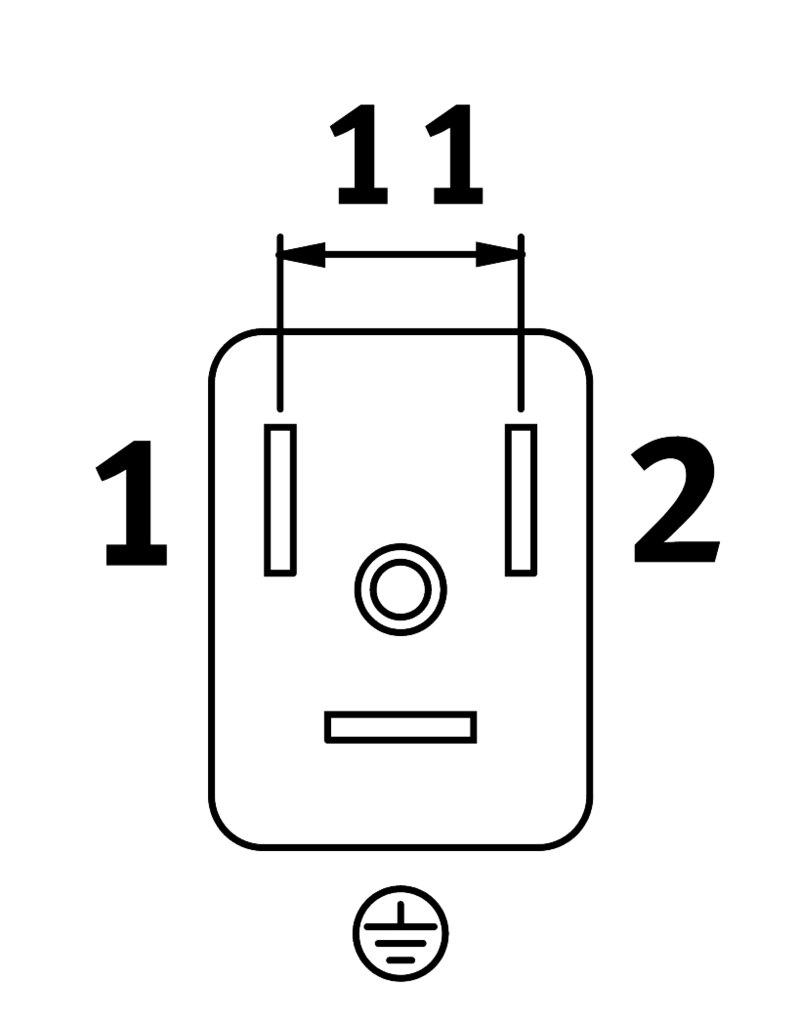

- Connection diagram form B as per industrial standard, 11 mm
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- On air solenoid valve with M3 central screw
- Electrical connection 2, connection technology
- Screw terminal
- DC operating voltage range
- 20.4 V...27.6 V
- Nominal operating voltage DC
- 24 V
- Operating voltage range AC
- 20.4 V...27.6 V
- Nominal operating voltage AC
- 24 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 0.8 kV
- Protective earth connection
- Available
- Cable tting
- M15x1.5
- Cable diameter
- 6 mm...8 mm
- Nominal conductor cross section
- 1.5 mm²
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Housing material
- PA
