Festo
8105863

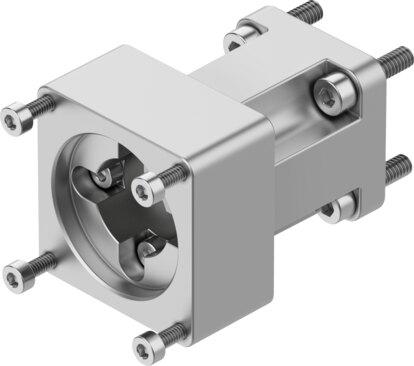

Axial kit EAMM-A-D19-38AA
The Festo 8105863 industrial component features a nominal length of 51.2 mm, a product weight of 121 g, and a mass moment of inertia of 0.28 kgmm². It accommodates any mounting position, a maximum rotational speed of 10000 rpm, a transferable torque of 1.1 Nm, and an IP40 degree of protection, operating within an ambient temperature range of -10 °C to 60 °C. Featuring VDMA24364-B2-L LABS conformity and RoHS-compliant materials, this unit integrates an actuator interface code of D19 and a motor-in interface code of 38AA. Submit the exact part number, quantity, and application requirements for a formal price quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8105863
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8105863.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 51.2 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 1.1 Nm
- Product weight
- 121 g
- Interface code, actuator
- D19
- Interface code, motor in
- 38AA
- Note on materials
- RoHS compliant
