Festo
8105926

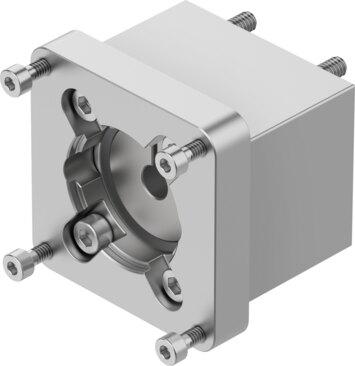

Axial kit EAMM-A-S38-60AA
Engineered by Festo, part number 8105926 is an industrial component featuring an actuator interface code of S38 and a motor-in interface code of 60AA with a transferable torque rating of 6.5 Nm and a product weight of 365 g. The unit functions with any mounting position, provides an IP40 degree of protection, and conforms to VDMA24364-B2-L LABS (PWIS) requirements, utilizing RoHS-compliant materials. Operating parameters include an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8105926
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8105926.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Transferable torque
- 6.5 Nm
- Product weight
- 365 g
- Interface code, actuator
- S38
- Interface code, motor in
- 60AA
- Note on materials
- RoHS compliant
