Festo
8105941

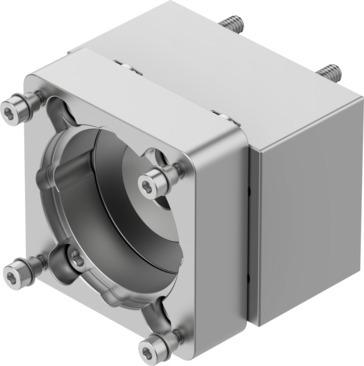

Axial kit EAMM-A-S48-60RA
The Festo industrial component, part number 8105941, features an actuator interface code of S48 and a motor input interface code of 60RA with a transferable torque of 12.5 Nm. Weighing 476 g, this RoHS-compliant unit offers any mounting position, VDMA24364-B2-L LABS conformity, and an IP40 degree of protection. It operates within ambient temperatures of -10 °C to 60 °C, storage temperatures between -25 °C and 60 °C, and relative air humidity ranging from 0 to 95 %. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8105941
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8105941.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Transferable torque
- 12.5 Nm
- Product weight
- 476 g
- Interface code, actuator
- S48
- Interface code, motor in
- 60RA
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8105941. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
