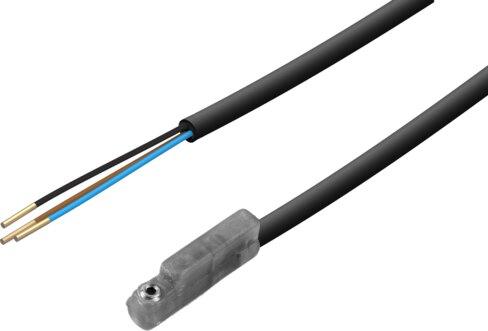

Reference imageConfirm configuration by manufacturer part number.
Festo
8106571
Proximity sensors SDBF-FAS-1L-PU-K-9-N-LE
The Festo part number 8106571 is a RoHS-compliant magneto-resistive industrial component designed for round slots to measure position within an ambient temperature range of -4 °F to 176 °F. Featuring a PNP switching output with a N.O. contact function, this unit operates on a 6 V to 24 V DC range and includes short-circuit and reverse polarity protection with a maximum output current of 200 mA, a max switching capacity DC of 4.8 W, a 4 µs on time, and a 1 V voltage drop. Electrical connection 1 utilizes a 3-wire open-end cable with a longitudinal orientation, featuring a black PVC cable sheath. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8106571
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8106571.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For round slot
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magneto-resistive
- Ambient temperature
- -4 °F...176 °F
- Switching output
- PNP
- Switching element function
- N.O. contact
- On time
- 4 µs
- Max. output current
- 200 mA
- Max. switching capacity DC
- 4.8 W
- Voltage drop
- 1 V
- Short-circuit protection
- Yes
- DC operating voltage range
- 6 V...24 V
- Reverse polarity protection
- Yes
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 1, number of pins/wires
- 3
- Connection outlet orientation
- Longitudinal
- Color cable sheath
- Black
- Material of cable sheath
- PVC
- Type of mounting
- Screwed on | Can be inserted in slot lengthwise
- Mounting position
- Any
- Housing colour
- Transparent
- Switching status indication
- LED
- Ambient temperature with exible cable installation
- -20 °C...80 °C
- Degree of protection
- NEMA 6
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8106571. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
