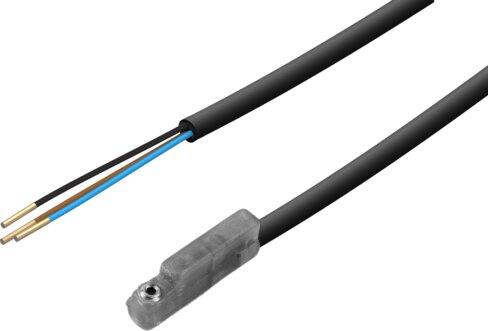

Reference imageConfirm configuration by manufacturer part number.
Festo
8106573
Proximity sensors SDBF-FAS-1L-NU-K-9-N-LE
The Festo 8106573 is an industrial component designed for round slots utilizing a magneto-resistive measuring principle to measure position across an ambient temperature range of -4 °F to 176 °F. Featuring an NPN switching output with an N.O. contact function, this RoHS compliant device operates on a DC voltage range of 6 V to 24 V, delivering a maximum output current of 200 mA, a 4 °s on time, and short-circuit and reverse polarity protection. Electrical connection is achieved via a 3-wire PVC cable with an open end in a longitudinal orientation and a black sheath. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8106573
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8106573.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For round slot
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magneto-resistive
- Ambient temperature
- -4 °F...176 °F
- Switching output
- NPN
- Switching element function
- N.O. contact
- On time
- 4 µs
- Max. output current
- 200 mA
- Max. switching capacity DC
- 4.8 W
- Voltage drop
- 1 V
- Short-circuit protection
- Yes
- DC operating voltage range
- 6 V...24 V
- Reverse polarity protection
- Yes
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 1, number of pins/wires
- 3
- Connection outlet orientation
- Longitudinal
- Color cable sheath
- Black
- Material of cable sheath
- PVC
- Type of mounting
- Screwed on | Can be inserted in slot lengthwise
- Mounting position
- Any
- Housing colour
- Transparent
- Switching status indication
- LED
- Ambient temperature with exible cable installation
- -20 °C...80 °C
- Degree of protection
- NEMA 6
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8106573. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
