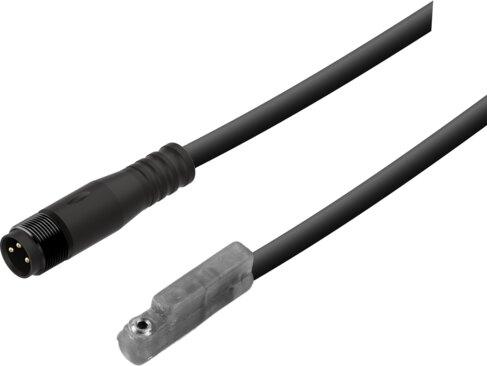

Reference imageConfirm configuration by manufacturer part number.
Festo
8106574
Proximity sensors SDBF-FAS-1L-NU-K-0.5-N-M8
The Festo 8106574 is a magneto-resistive position sensor featuring a design for round slots and an NPN, N.O. contact switching output operating within a 6 V to 24 V DC range. This RoHS-compliant component includes short-circuit and reverse polarity protection, a maximum output current of 200 mA, a maximum DC switching capacity of 4.8 W, a 4 µs on time, and a 1 V voltage drop across an ambient temperature range of -4 °F to 176 °F. Electrical connection is provided via a longitudinal cable with a socket utilizing an M8x1 A-coded 3-pin connection technology per EN 61076-2-104 and a black PVC sheath. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8106574
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8106574.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For round slot
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magneto-resistive
- Ambient temperature
- -4 °F...176 °F
- Switching output
- NPN
- Switching element function
- N.O. contact
- On time
- 4 µs
- Max. output current
- 200 mA
- Max. switching capacity DC
- 4.8 W
- Voltage drop
- 1 V
- Short-circuit protection
- Yes
- DC operating voltage range
- 6 V...24 V
- Reverse polarity protection
- Yes
- Electrical connection 1, connection type
- Cable with socket
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Connection outlet orientation
- Longitudinal
- Color cable sheath
- Black
- Material of cable sheath
- PVC
- Type of mounting
- Screwed on | Can be inserted in slot lengthwise
- Mounting position
- Any
- Housing colour
- Transparent
- Switching status indication
- LED
- Ambient temperature with exible cable installation
- -20 °C...80 °C
- Degree of protection
- NEMA 6
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8106574. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
