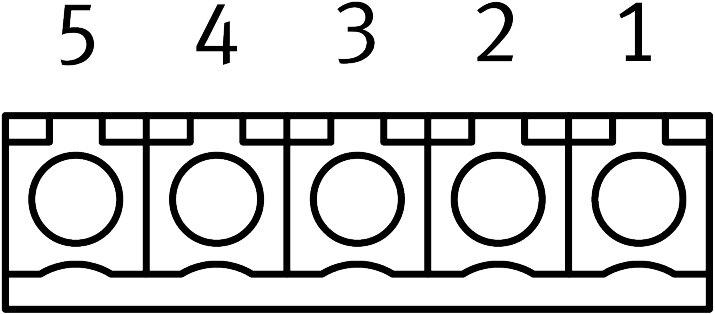

Reference imageConfirm configuration by manufacturer part number.
Festo
8106756
Terminal strip NECC-L8G5-C1
The Festo 8106756 is a straight industrial component featuring a square socket with connection pattern L8 and 5 pins or wires for inserted mounting, paired with a spring-loaded terminal for electrical connection 2. Weighing 3.8 g with a pack size of 1, it operates within a 0 V to 300 V DC voltage range, a current rating of 8 A at 40 °C, and a surge resistance of 1.6 kV without shielding. Built for an ambient temperature range of -40 °C to 115 °C, the RoHS-compliant unit achieves an IP20 degree of protection in the mounted state, features VDMA24364 Zone III LABS conformity, and possesses a corrosion resistance class of CRC 1 for low corrosion stress with a nominal conductor cross section of AWG28 to 16. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8106756
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8106756.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable outlet
- Straight
- Product weight
- 3.8 g
- Pack size
- 1
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Connection pattern L8
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, type of mounting
- Inserted
- Electrical connection 2, connection technology
- Spring-loaded terminal
- DC operating voltage range
- 0 V...300 V
- Current rating at 40° C
- 8 A
- Surge resistance
- 1.6 kV
- Shield
- No
- Nominal conductor cross section
- AWG28 - 16
- Degree of protection
- IP20
- Note on degree of protection
- In mounted state
- Ambient temperature
- -40 °C...115 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA
- Housing colour
- Black
