Name: Festo 8107591 Bus node CTEU-EP-EX1C
Brand: Festo

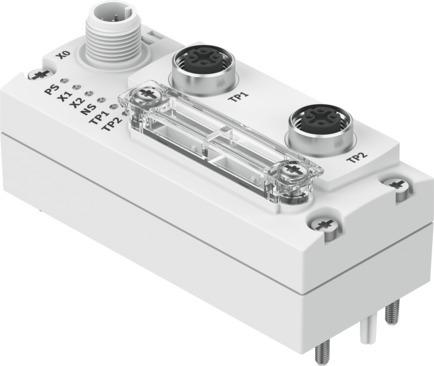

Bus node CTEU-EP-EX1C

The Festo part number 8107591 is an industrial component supporting EtherNet/IP and Modbus TCP protocols, measuring 40 mm by 91 mm by 50 mm with a product weight of 98 g. Built with an IP65 and IP67 degree of protection and a corrosion resistance class of CRC 2, it operates in ambient temperatures from 0 °C to 50 °C and storage temperatures from -20 °C to 70 °C. This unit carries CE, UKCA, RCM, c UL us, and extensive explosion prevention certifications including ATEX Zone 2 and Zone 22 ratings. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8107591
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8107591.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: EtherNet/IP | Modbus® TCP
Dimensions W x L x H: 40 mm x 91 mm x 50 mm
Product weight: 98 g
Ambient temperature: 0 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Certication: RCM compliance mark | c UL us - Listed (OL)
Explosion prevention and protection: Class I, Div. 2 (CA) | Class I, Div. 2 (US) | Class II, Div. 2 (CA) | Class II, Div. 2 (US) | Zone 0 (BR) | Zone 2 (ATEX) | Zone 2 (CA) | Zone 2 (CN) | Zone 2 (IEC-EX) | Zone 2 (KR) | Zone 2 (UKEX) | Zone 2 (US) | Zone 22 (ATEX) | Zone 22 (BR) | Zone 22 (CA) | Zone 22 (CN) | Zone 22 (IEC-EX) | Zone 22 (KR) | Zone 22 (UKEX) | Zone 22 (US)
ATEX category gas: II 3G
ATEX category for dust: II 3D

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8107591. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
