Festo
8107704

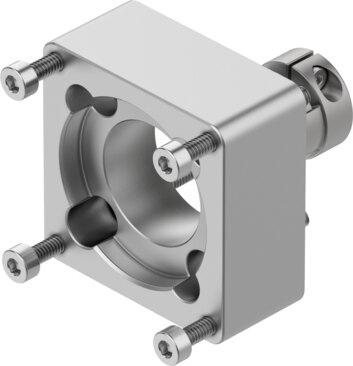

Axial kit EAMM-A-P4-28B-38AA
The Festo industrial component, part number 8107704, features a nominal length of 17.5 mm, a product weight of 59 g, and a mass moment of inertia of 0.28 kgmm². It supports a maximum rotational speed of 10000 rpm, a transferable torque of 0.7 Nm, and operates with actuator interface code P4-28B, motor input interface code 38AA, and coupling housing interface code 28B. Designed with an IP40 degree of protection, RoHS-compliant materials, and VDMA24364-B2-L LABS conformity, this unit functions in ambient temperatures from -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and relative air humidity levels of 0 to 95% in any mounting position. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8107704
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8107704.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 17.5 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 0.7 Nm
- Product weight
- 59 g
- Interface code, actuator
- P4-28B
- Interface code, motor in
- 38AA
- Interface code, coupling housing
- 28B
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8107704. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
