Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

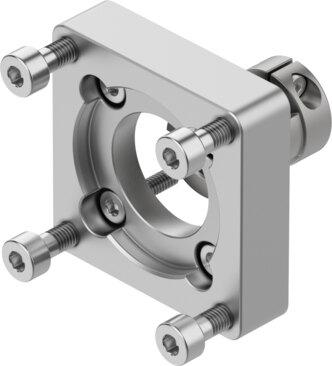

Reference imageConfirm configuration by manufacturer part number.
Festo
8107708
Axial kit EAMM-A-P4-28B-40RA
The Festo part number 8107708 is an industrial component featuring a nominal length of 10.5 mm, a mass moment of inertia of 0.28 kgmm², and a product weight of 50 g with RoHS compliant materials. This unit supports a maximum rotational speed of 10000 rpm, a transferable torque of 0.7 Nm, an IP40 degree of protection, and VDMA24364-B2-L LABS conformity for any mounting position. It operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and a relative air humidity of 0 to 95%, integrating interface codes P4-28B for the actuator, 40RA for the motor in, and 28B for the coupling housing. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8107708
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8107708.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 10.5 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 0.7 Nm
- Product weight
- 50 g
- Interface code, actuator
- P4-28B
- Interface code, motor in
- 40RA
- Interface code, coupling housing
- 28B
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8107708. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
