Festo
8107712

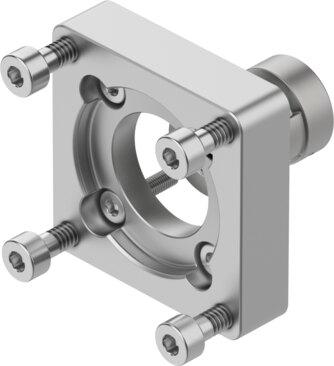

Axial kit EAMM-A-P5-28B-40RA
The Festo part number 8107712 is an industrial component featuring a nominal length of 10.5 mm, a product weight of 49 g, and a transferable torque of 1.1 Nm supporting a maximum rotational speed of 10000 rpm. This unit includes a mass moment of inertia of 0.28 kgmm², an IP40 degree of protection, and VDMA24364-B2-L LABS conformity with RoHS compliance. It operates within ambient temperatures of -10 °C to 60 °C, storage temperatures of -25 °C to 60 °C, and relative air humidity levels from 0 to 95% in any mounting position utilizing actuator interface code P5-28B, motor in interface code 40RA, and coupling housing interface code 28B. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8107712
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8107712.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 10.5 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 1.1 Nm
- Product weight
- 49 g
- Interface code, actuator
- P5-28B
- Interface code, motor in
- 40RA
- Interface code, coupling housing
- 28B
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8107712. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
