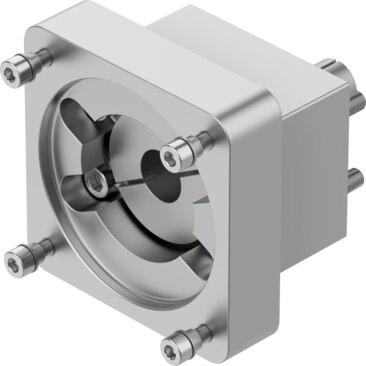

Reference imageConfirm configuration by manufacturer part number.
Festo
8107714
Axial kit EAMM-A-N48-80PB
The Festo 8107714 industrial component features a nominal length of 54 mm, a mass moment of inertia of 45 kgmm², and a transferable torque of 17 Nm with a maximum rotational speed of 6000 rpm. This RoHS compliant part includes actuator interface code N48, motor interface codes 80PB and 80R, and a product weight of 625 g with IP40 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C, relative air humidity of 0 to 95%, storage temperature from -25 °C to 60 °C, and VDMA24364-B2-L LABS conformity, it supports mounting in any position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8107714
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8107714.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 54 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 45 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 625 g
- Interface code, actuator
- N48
- Interface code, motor in
- 80PB | 80R
- Note on materials
- RoHS compliant
