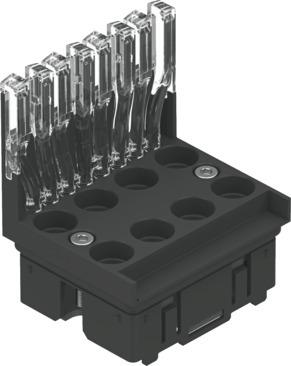

Name: Festo 8108543 Electronics module VMPA1-FB-EMG-8-S
Brand: Festo

Electronics module VMPA1-FB-EMG-8-S

The Festo part number 8108543 is an industrial component featuring fieldbus electrical actuation, a POM housing material, and a product weight of 20 g with a corrosion resistance class of CRC 1 and VDMA24364 Zone III LABS conformity. It supports a maximum of 4 valve positions, 7 solenoid coils, 7 outputs, and 1 input, operating within a DC voltage range of 18 V to 30 V for both electronics/sensors and load voltage. This unit provides diagnostics for pneumatic valve undervoltage, channel-specific parameterization for failsafe, forcing, idle mode, and monitoring, alongside reverse polarity protection and electrical isolation between the channel and internal bus. Request a quote today by submitting the exact part number, quantity, and application requirements.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8108543
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8108543.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Diagnostics: Undervoltage of pneumatic valves
Max. no. of valve positions: 4
Max. no. of solenoid coils: 7
Parameterization: Failsafe per channel | Forcing per channel | Idle mode per channel | Monitoring
Reverse polarity protection: Yes
Operating voltage range DC electronics/sensors: 18 V...30 V
DC load voltage operating voltage range: 18 V...30 V
Intrinsic current consumption at load voltage: 6.5 mA
Intrinsic current consumption at operating voltage: 17 mA
Max. no. of outputs: 7
Max. number of inputs: 1
Nominal pick-up current per solenoid coil: 58 mA up to 24 ms
Nominal current with current reduction: 25 mA after 24 ms
Electrical isolation between channel and internal bus: Yes
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364 Zone III
Ambient temperature: -5 °C...50 °C
Product weight: 20 g
Electrical actuation: Fieldbus
Housing material: POM
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8108543. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
