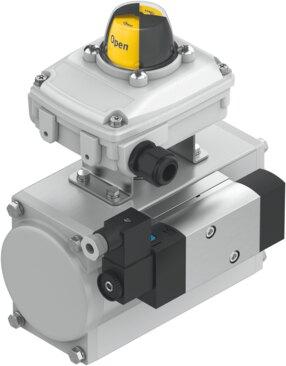

Reference imageConfirm configuration by manufacturer part number.
Festo
8108611
Quarter turn actuator unit KDFP-DFPD
Engineered with a gear rack and pinion structural design, this Festo industrial component operates in both double-acting and single-acting modes across a swivel angle of 90 degrees. The unit functions within an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) and an ambient temperature range of -50 °C to 150 °C, incorporating RoHS-compliant materials alongside VDMA24364 Zone III LABS conformity. It accommodates valve actuator sizes from 10 to 2300, flange hole patterns from F03 to F16, and product weights spanning 1 kg to 100 kg. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8108611
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8108611.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Gear rack/pinion
- Mode of operation
- Double-acting | Single-acting
- Size of valve actuator
- 10 | 20 | 40 | 80 | 120 | 160 | 240 | 300 | 480 | 700 | 900 | 1200 | 2300
- Flange hole pattern
- F03 | F04 | F05 | F07 | F10 | F12 | F14 | F16
- Swivel angle
- 90 deg
- Ambient temperature
- -50 °C...150 °C
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 1 kg...100 kg
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8108611. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
