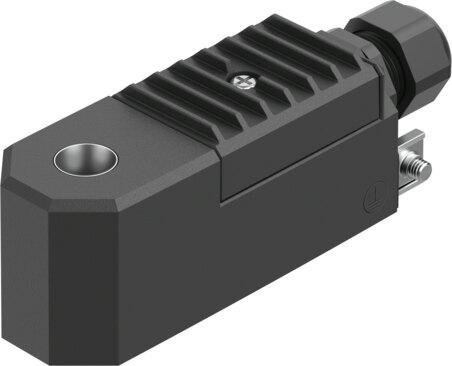

Reference imageConfirm configuration by manufacturer part number.
Festo
8109396
Solenoid coil VACC-S13-18-K4-1U-EX4ME
The Festo 8109396 is an electrically actuated industrial component featuring a 100% duty cycle, Class H insulation, and operation at 24 V DC (1.8 W) or 24 V AC (1.8 VA at 40/65 Hz) with permissible voltage fluctuations of -15% / +10%. Rated to IP65 with any mounting position, this unit carries CE and UKCA markings alongside global explosion protection certifications including ATEX, IEC-Ex, and UKEX for Zones 1, 2, 21, and 22 under certificate authorities BVS 15ATEXE029X, IECEx BVS 15.0075X, and TÜV 21 UKEX 7015 X. Complying with VDMA24364 Zone III LABS conformity, the hardware supports explosive ambient temperatures ranging from -30°C to +60°C depending on the specific temperature class. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8109396
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8109396.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 24 V DC: 1.8 W | 24 V AC: 40/65 Hz, power 1.8 VA
- Permissible voltage uctuations
- -15% / +10%
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Db (IEC-EX) | EPL Gb (GB) | EPL Gb (IEC-EX)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- Certicate issuing authority
- BVS 15ATEXE029X | IECEx BVS 15.0075X | German Technical Control Board (TÜV) 21 UKEX 7015 X
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex eb mb IIC T* Gb
- Type of (ignition) protection for dust
- Ex tb IIIC T*°C Db
- Explosive ambient temperature
- T4/T130°C: -30°C <= Ta <= +60°C | T5/T95°C: -30°C <= Ta <= +60°C | T6/T85°C: -30°C <= Ta <= +50°C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8109396. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
