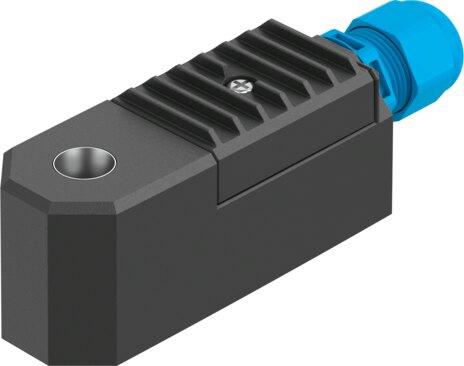

Reference imageConfirm configuration by manufacturer part number.
Festo
8109401
Solenoid coil VACC-S13-11-K4-1-EX4A
The Festo part number 8109401 is an electrical industrial component featuring a 100% duty cycle, a required current consumption of 16 mA, insulation class H, and coil characteristics of 14 to 32 V DC at 0.22 to 1.1 W. It operates with a maximum input power Pi of 1.2 W, maximum input voltage Vi of 32 V, maximum input current Ii of 0.2 A, and permissible voltage fluctuations of -15% / +10% with negligibly small effective internal capacitance Ci and inductance Li. This component is certified for Zone 1, Zone 2, Zone 21, and Zone 22 with ATEX, IEC-EX, and UKEX compliance, carrying CE and UKCA markings per EU and UK directives for EMC, explosion protection, and RoHS. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8109401
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8109401.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Required current consumption
- 16 mA
- Insulation class
- H
- Max. input power Pi
- 1.2 W
- Max. input voltage Vi
- 32 V
- Max. input current Ii
- 0.2 A
- Coil characteristics
- 14 - 32 V DC: 0.22 - 1.1 W
- Effective internal capacitance Ci
- Negligibly small
- Effective internal inductance Li
- Negligibly small
- Permissible voltage uctuations
- -15% / +10%
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Db (IEC-EX) | EPL Gb (GB) | EPL Gb (IEC-EX)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- Certicate issuing authority
- BVS 15 ATEX E 030 X | IECEx BVS 15.0020 X | German Technical Control Board (TÜV) 21 UKEX 7016 X
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
