8109554

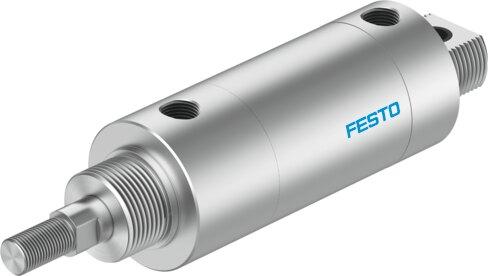

Name: Festo 8109554 Round cylinder DPRA-N-...-2"- -
Brand: Festo

Round cylinder DPRA-N-...-2"- -

Engineered by Festo with a 2" piston diameter and variable stroke lengths from 0.0625" to 12", this industrial component operates within pressures of 9.99 psi to 150 psi using compressed air per ISO 8573-1:2010 [7:4:4]. The structural design integrates a piston, piston rod, and cylinder barrel supporting double-acting, single-acting, pushing, and pulling modes of operation with multiple cushioning and mounting variants. Ambient temperature limits range from -40 °F to 300 °F alongside corrosion resistance classes 1 and 4 depending on the selected configuration. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8109554
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8109554.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 0.0625 in...12 in
Piston diameter: 2"
Piston rod thread: 1/2-20 UNF-2A
Cushioning: No cushioning | Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Structural design: Piston | Piston rod | Cylinder barrel
Position sensing: Via proximity switch
Variants: End cap with swiveling rod eye, rotated 90° | End cap with swiveling rod eye and bearing sleeve | End cap with swiveling rod eye | Wiper made of NBR | Extended external thread piston rod | Extended piston rod | Bearing cap with mounting thread | Axial supply port | Lateral supply port | With anti-twist protection | Through piston rod | Temperature range 0 to + 150°C | Temperature range -40 to 80°C | Piston rod at one end
Operating pressure: 9.99 psi...150 psi
Mode of operation: Double-acting | Pushing | Single-acting | Pulling
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress | 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Ambient temperature: -40 °F...300 °F
Product weight: 1.04 lb...4.04 lb

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8109554. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
