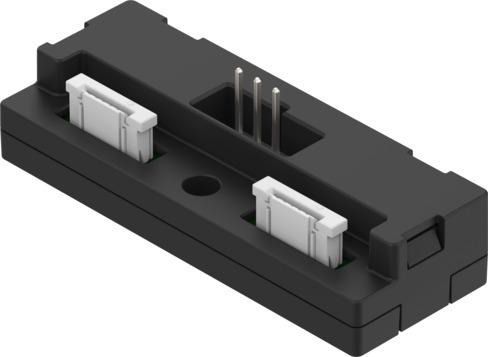

Reference imageConfirm configuration by manufacturer part number.
Festo
8109877
Electrical plug base NEFV-V13-XX4G3-T1G3
The Festo part number 8109877 is an industrial component featuring dimensions of 18.7 mm by 50 mm by 15.3 mm and a product weight of 6.8 g. This hardware utilizes a mounting type with a through-hole for an M3 screw alongside a straight cable outlet. It incorporates dual field device end electrical connections designed as rectangular sockets utilizing ZIF connection technology with five pins/wires and three occupied pins/wires in an inserted mounting type, complemented by a rectangular control-side electrical connection. Request a quote for this specific part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8109877
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8109877.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 18.7 mm x 50 mm x 15.3 mm
- Type of mounting
- With through-hole for M3 screw
- Cable outlet
- Straight
- Product weight
- 6.8 g
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Rectangular
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- ZIF
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- Inserted
- Electrical connection 2, function
- Field device end
- Electrical connection 2, design
- Rectangular
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, connection technology
- ZIF
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 3
- Electrical connection 2, type of mounting
- Inserted
- Electrical connection 3, function
- Control side
- Electrical connection 3, design
- Rectangular
- Electrical connection 3, connection type
- Plug
- Electrical connection 3, connection technology
- Festo-specic coding
- Electrical connection 3, number of pins/wires
- 3
- Electrical connection 3, occupied pins/wires
- 3
- Electrical connection 3, type of mounting
- Inserted
- DC operating voltage range
- 0 V...310 V
- Protective earth connection
- Not available
- Shield
- no
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
- Ambient temperature
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8109877. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
