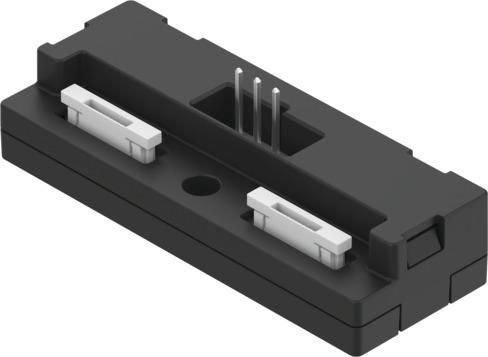

Reference imageConfirm configuration by manufacturer part number.
Festo
8109878
Electrical plug base NEFV-V14-XX4G3-T1G3
This Festo industrial component, part number 8109878, features dimensions of 18.7 mm by 50 mm by 15.3 mm and a product weight of 6.8 g. It is configured with a through-hole for an M3 screw mounting type and a straight cable outlet. The unit includes three rectangular socket connections utilizing ZIF connection technology, where electrical connections 1 and 2 feature 12 pins with 3 occupied, and electrical connection 3 serves the control side. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8109878
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8109878.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 18.7 mm x 50 mm x 15.3 mm
- Type of mounting
- With through-hole for M3 screw
- Cable outlet
- Straight
- Product weight
- 6.8 g
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Rectangular
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- ZIF
- Electrical connection 1, number of pins/wires
- 12
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- Inserted
- Electrical connection 2, function
- Field device end
- Electrical connection 2, design
- Rectangular
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, connection technology
- ZIF
- Electrical connection 2, number of pins/wires
- 12
- Electrical connection 2, occupied pins/wires
- 3
- Electrical connection 2, type of mounting
- Inserted
- Electrical connection 3, function
- Control side
- Electrical connection 3, design
- Rectangular
- Electrical connection 3, connection type
- Plug
- Electrical connection 3, connection technology
- Festo-specic coding
- Electrical connection 3, number of pins/wires
- 3
- Electrical connection 3, occupied pins/wires
- 3
- Electrical connection 3, type of mounting
- Inserted
- DC operating voltage range
- 0 V...310 V
- Protective earth connection
- Not available
- Shield
- no
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
- Ambient temperature
- -10 °C...60 °C
