Name: Festo 8110369 Interface CPX-FB43
Brand: Festo

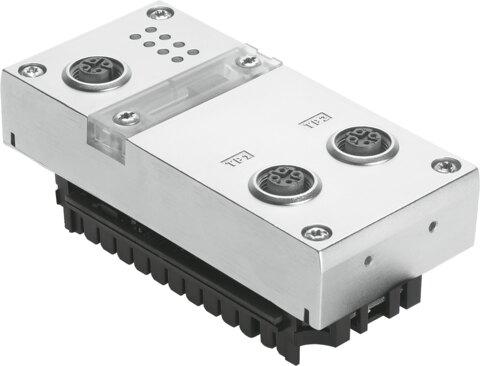

Interface CPX-FB43

The Festo industrial component, part number 8110369, features PROFINET IRT and PROFINET RT communication protocols with a 100 Mbit/s baud rate and a 64-byte maximum address capacity for both inputs and outputs. Housed in die-cast aluminum with dimensions of 50 mm x 107 mm x 50 mm including the interlinking block and a weight of 185 g, it provides IP65 and IP67 protection, an ambient operating temperature range of -5 °C to 50 °C, and a corrosion resistance class of CRC 0. The unit includes M12x1 D-coded 2x socket fieldbus interfaces, DIL switch control elements, comprehensive LED status displays for system and bus conditions, and channel-oriented diagnostics with a diagnostic memory. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8110369
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8110369.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: PROFINET IRT | PROFINET RT
Dimensions W x L x H: (incl. interlinking block) | 50 mm x 107 mm x 50 mm
Product weight: 185 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Certication: RCM compliance mark
Note on materials: RoHS compliant
Housing material: Die-cast aluminum
LED display (product-specic): M: Modify, parameterization | PL: Load supply | PS: electronics supply, sensor supply | SF: System fault
LED display (bus-specic): M/P: Maintenance/PROFIenergy | NF: Network error | TP1: Network active port 1 | TP2: Network active port 2
Device-specic diagnostics: Channel-oriented and module-oriented diagnostics | Undervoltage of modules | Diagnostic memory
Control elements: DIL switch
Fieldbus interface: 2x socket, M12x1, 4-pin, D-coded
Max. address capacity inputs: 64 byte
Max. address capacity outputs: 64 byte
Parameterization: Diagnostic behavior | Fail-safe response | forcing of channels | Signal setup | System Parameters
Baud rate: 100 Mbit/s
Conguration support: GSDML le

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8110369. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
