Festo
8110370

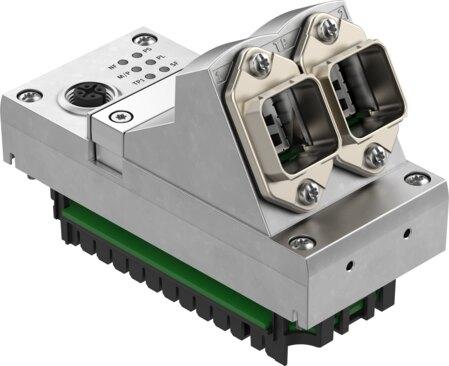

Interface CPX-M-FB44
The Festo part number 8110370 is an industrial component measuring 50 mm x 107 mm x 80 mm with an interlinking block and weighing 280 g, featuring a die-cast aluminum housing rated IP65 and IP67 with a corrosion resistance class of CRC 0. Operating via PROFINET IRT and PROFINET RT protocols at a baud rate of 100 Mbit/s, this unit includes dual RJ45 push-pull AIDA fieldbus sockets, DIL switch control elements, and comprehensive LED displays for monitoring bus and product status. It provides a maximum address capacity of 64 bytes for both inputs and outputs, supports channel-oriented and module-oriented diagnostics with a diagnostic memory, and functions within an ambient temperature range of -5 °C to 50 °C. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8110370
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8110370.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- PROFINET IRT | PROFINET RT
- Dimensions W x L x H
- (incl. interlinking block) | 50 mm x 107 mm x 80 mm
- Product weight
- 280 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Certication
- RCM compliance mark
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
- LED display (product-specic)
- M: Modify, parameterization | PL: Load supply | PS: electronics supply, sensor supply | SF: System fault
- LED display (bus-specic)
- M/P: Maintenance/PROFIenergy | NF: Network error | TP1: Network active port 1 | TP2: Network active port 2
- Device-specic diagnostics
- Channel-oriented and module-oriented diagnostics | Undervoltage of modules | Diagnostic memory
- Control elements
- DIL switch
- Fieldbus interface
- 2x socket RJ45 push-pull, AIDA
- Max. address capacity inputs
- 64 byte
- Max. address capacity outputs
- 64 byte
- Parameterization
- Diagnostic behavior | Fail-safe response | forcing of channels | Signal setup | System Parameters
- Baud rate
- 100 Mbit/s
- Conguration support
- GSDML le
