8110371

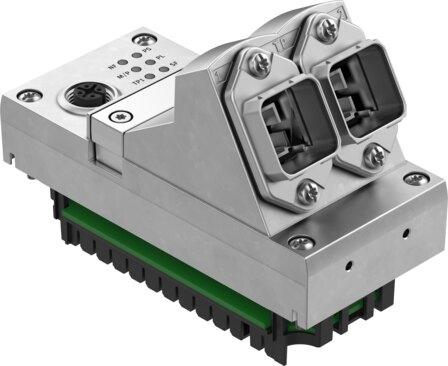

Name: Festo 8110371 Interface CPX-M-FB45
Brand: Festo

Interface CPX-M-FB45

The Festo part number 8110371 is an industrial component featuring PROFINET IRT and PROFINET RT protocols, housed in die-cast aluminum with IP65 and IP67 protection ratings. Measuring 50 mm x 107 mm x 80 mm with a weight of 280 g, it operates within an ambient temperature range of -5 °C to 50 °C and includes comprehensive LED status displays for both product-specific and bus-specific diagnostics. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8110371
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8110371.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: PROFINET IRT | PROFINET RT
Dimensions W x L x H: (incl. interlinking block) | 50 mm x 107 mm x 80 mm
Product weight: 280 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Certication: RCM compliance mark
Note on materials: RoHS compliant
Housing material: Die-cast aluminum
LED display (product-specic): M: Modify, parameterization | PL: Load supply | PS: electronics supply, sensor supply | SF: System fault
LED display (bus-specic): M/P: Maintenance/PROFIenergy | NF: Network error | TP1: Network active port 1 | TP2: Network active port 2
Device-specic diagnostics: Channel-oriented and module-oriented diagnostics | Undervoltage of modules | Diagnostic memory
Control elements: DIL switch
Fieldbus interface: 2x socket SCRJ push-pull, AIDA
Max. address capacity inputs: 64 byte
Max. address capacity outputs: 64 byte
Parameterization: Diagnostic behavior | Fail-safe response | forcing of channels | Signal setup | System Parameters
Baud rate: 100 Mbit/s
Conguration support: GSDML le

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8110371. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
