Festo
8110621

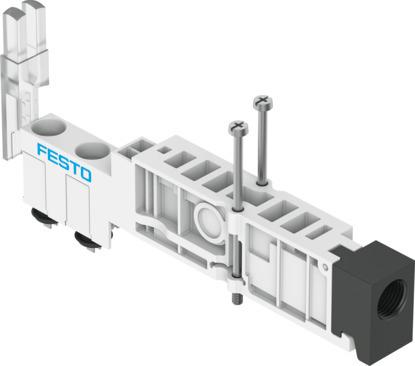

Vertical pressure supply plate VMPA14-VSP-0
The Festo part number 8110621 is an industrial component featuring a 14 mm width dimension, a supply plate material of PA-reinforced polymer, and a product weight of 30 g with RoHS compliant materials. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:4:4]. Featuring a G1/8 pneumatic connection 1, this unit provides a corrosion resistance class (CRC) of 1 for low corrosion stress, VDMA24364-B1/B2-L LABS conformity, and an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8110621
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8110621.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 14 mm
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 30 g
- Pneumatic connection 1
- G1/8
- Note on materials
- RoHS compliant
- Supply plate material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8110621. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
