Festo
8110622

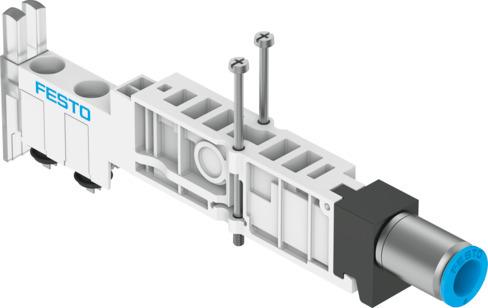

Vertical pressure supply plate VMPA14-VSP-QS8
Engineered by Festo, the part number 8110622 is an industrial component featuring a 14 mm width dimension, a product weight of 50 g, and a supply plate made of PA-reinforced material with RoHS compliance. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). The unit includes a QS-8 pneumatic connection 1, a corrosion resistance class (CRC) of 1 for low corrosion stress, LABS conformity under VDMA24364-B1/B2-L, and an ambient temperature tolerance of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8110622
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8110622.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 14 mm
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 50 g
- Pneumatic connection 1
- QS-8
- Note on materials
- RoHS compliant
- Supply plate material
- PA-reinforced
