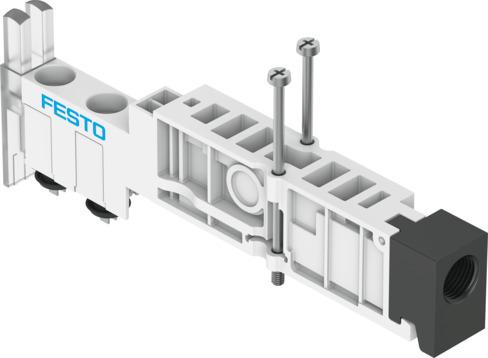

Reference imageConfirm configuration by manufacturer part number.
Festo
8110624
Vertical pressure supply plate VMPA14-VSP-QS5/16
The Festo part number 8110624 is a 14 mm industrial component featuring a PA-reinforced supply plate material and a product weight of 50 g. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] within an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). This RoHS compliant unit includes a QS-5/16 pneumatic connection 1, a corrosion resistance class of CRC 1 for low corrosion stress, LABS conformity to VDMA24364-B1/B2-L, and an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8110624
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8110624.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 14 mm
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 50 g
- Pneumatic connection 1
- QS-5/16
- Note on materials
- RoHS compliant
- Supply plate material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8110624. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
