Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

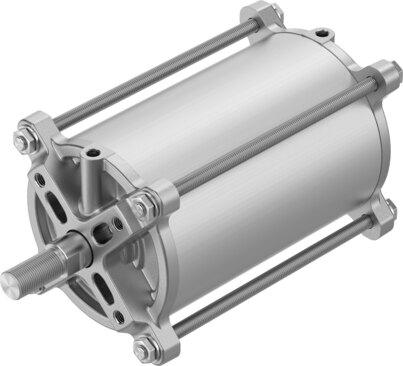

Reference imageConfirm configuration by manufacturer part number.
Festo
8110772
Linear actuator DFPC-125-150-D
This Festo industrial component, part number 8110772, is a double-acting valve actuator featuring a 125 mm piston diameter, a 125 actuator size, and a 150 mm stroke. The unit incorporates elastic cushioning rings at both ends, an F10 flange hole pattern, an ISO 5210 standard valve connection, and a structural design consisting of a piston, piston rod, tie rod 1, and cylinder barrel. Operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) with compressed air per ISO 8573-1:2010 [7:4:4], it delivers a theoretical retracting force of 7069 N at a nominal pressure of 0.6 MPa (6 bar, 87 psi). Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8110772
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8110772.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 125
- Flange hole pattern
- F10
- Stroke
- 150 mm
- Piston diameter
- 125 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1.1 J
- Theoretical force at 6 bar, retracting
- 7069 N
- Theoretical force at 6 bar, advancing
- 7363 N
- Air consumption, retracting, per 10 mm stroke
- 0.825 l
- Air consumption advancing per 10 mm stroke
- 0.859 l
- Moving mass at 0 mm stroke
- 1059.6 g
- Additional moving mass per 10 mm stroke
- 38.9 g
- Product weight
- 4580 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8110772. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
