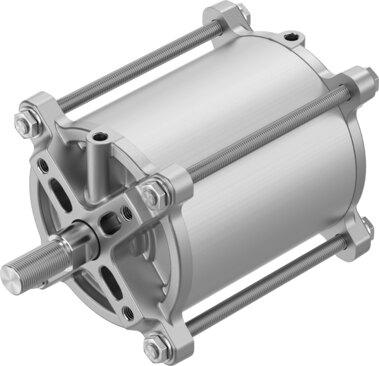

Reference imageConfirm configuration by manufacturer part number.
Festo
8110797
Linear actuator DFPC-125- -
The Festo part number 8110797 is a double-acting industrial component featuring a 125 mm piston diameter, an F10 flange hole pattern, and a stroke ranging from 10 mm to 1600 mm. Operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar or 29 psi to 116 psi) at a nominal operating pressure of 0.6 MPa (6 bar or 87 psi), this structural design incorporates a piston, piston rod, tie rod 1, and cylinder barrel with elastic cushioning rings or pads at both ends. It includes position sensing via proximity switch, allows any mounting position, and features an ISO 5210 standard connection for valves alongside ATEX and UKEX explosion protection certifications for zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8110797
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8110797.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 125
- Flange hole pattern
- F10
- Stroke
- 10 mm...1600 mm
- Piston diameter
- 125 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Extended external thread piston rod | Special thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod | Spacer bolt on the bearing cap end
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
