Festo
8111391

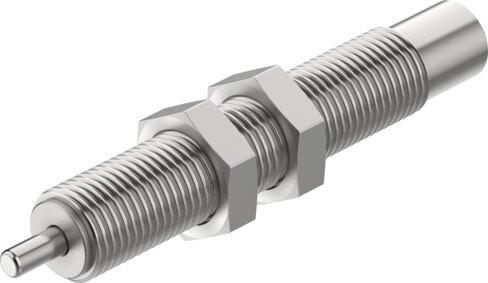

Shock absorber DYSS-4-4-Y1F-G2
The Festo 8111391 is a single-acting industrial component featuring a size 4 design with a 4 mm stroke and self-adjusting cushioning. Operating in a pushing mode with any mounting position, this part handles a maximum impact velocity of 1 m/s, a max stop force of 100 N, and a max energy absorption of 0.8 J per stroke. It is rated for a corrosion resistance class of 2 and an ambient temperature range of -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8111391
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8111391.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Stroke
- 4 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 1 m/s
- Reset time at room temperature
- 0.2 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...80 °C
- Cushioning length
- 4 mm
- Max. stop force
- 100 N
- Max. tightening torque
- 1 Nm
- Max. energy absorption per stroke
- 0.8 J
- Max. energy absorption per hour
- 5500 J
- Max. residual energy
- 0.006 J
- Resetting force
- 0.7 N
- Min. insertion force
- 4.5 N
- Product weight
- 4.5 g
- Load range
- 1.7 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
- Piston rod material
- High-alloy steel
