Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

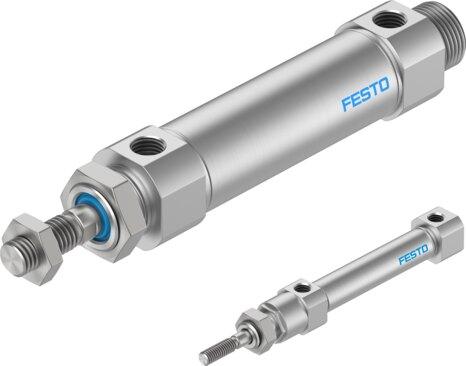

Reference imageConfirm configuration by manufacturer part number.
Festo
8112002
Round cylinder DSNU-S-8- -
Engineered by Festo, part number 8112002 is a double-acting industrial component featuring an 8 mm piston diameter, an adjustable stroke ranging from 1 mm to 100 mm, and elastic cushioning rings at both ends. It operates within a pressure range of 0.15 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 30.2 N advancing and 22.6 N retracting at 6 bar. The assembly includes a piston, piston rod, and cylinder barrel with a basic weight of 20 g, a moving mass of 6.3 g at 0 mm stroke, and a moderate corrosion resistance class of 2. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112002
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112002.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...100 mm
- Piston diameter
- 8 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Internal thread on piston rod | Extended piston rod | Axial supply port | Swivel mounting, end cap | Lateral supply port | Fastening thread, end cap | Shortened piston rod external thread
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.03 J
- Theoretical force at 6 bar, retracting
- 22.6 N
- Theoretical force at 6 bar, advancing
- 30.2 N
- Moving mass at 0 mm stroke
- 6.3 g
- Additional moving mass per 10 mm stroke
- 1 g
- Basic weight with 0 mm stroke
- 20 g
- Additional weight per 10 mm stroke
- 2.4 g
- Type of mounting
- With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8112002. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
